$7,849.00

2010 eXmark Lazer Z LZ27KC604 Riding Mower

27 HP Kohler w/ 60" Ultracut Deck

Now until October 31, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form

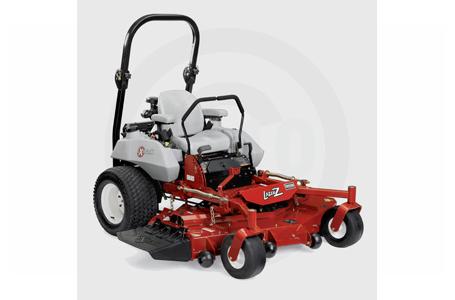

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The Commercial zero-turn Mower that Landscape Professionals Choose 2 to 1 Over Any Other

  • Robust engine and muffler guard better protects engine and minimizes muffler damage and maintenace costs.
  • Convenient retractable seatbelt.
  • Large diameter (13 x 6.50-6) smooth-tread, semi-pneumatic, front caster tires for increased reliability.
  • High-back, Elastomeric Vibration Control (EVC) seat with armrests.
  • Blade-Tip speed approximately 18,500 fpm.
  • Quick-lift platform assist which lets the operator use leg power to easily raise and lower the mowing deck.
  • Heavy-duty canister air filtration system that improves engine life, simplifies maintenance and boosts overall productivity.
  • Adjustable dampeners allow the operator to custom drive responsiveness to suit personal preference.
  • 24 x 12-12, 4-ply MultiTrac® drive tires provide optimum traction and stability.
  • 60 in. UltraCut™ deck
  • Powered by 27 hp Kohler® SP engine
Optional Accessories
  • Micro-Mulch™ System
  • UltraVac®3-Bagger and QDS Systems
  • Exmark Turf Striper
  • Sun Shade
  • Light Kit
  • Trash Container
  • CustomRide™ Seat Suspension
  • Operator Controlled Discharge
  • Lazer Locker
Specifications
  • Engine: 27 hp Kohler® Command™ SP V-Twin w/electric start
  • Drive System: Two Hydro-Gear 12cc/rev pumps with integral SCR valves, powering two high-torque Parker/Ross wheel motors with 1.25 in. (3.2 cm) diameter tapered shafts. Shaft mounting cooling fans on both pumps.
  • Speed: Infinitely variable speed selection from 0-10 mph (16 kmph) forward, 0-6.3 mph (10.1 kmph) reverse.
  • PTO Engagement: MagStop Electromagnetic 200 ft-lbs clutch with spot brake. 2-year warranty.
  • Fuel Capacity: 13.5 gals. (51.1 l) twin fuel tanks.
  • Blades: 3-20.75 in. (52.7 cm)
  • Weight: 1130 lbs.
  • Width: 72.2 in. (183.4 cm)
  • Length: 78.5 in. (199.4 cm)
  • Height: 71.9 in. (182.6 cm)
  • Deck Style: Full-floating UltraCutTM side-discharge standard with option to bag or mulch
  • Deck Width: UltraCut 60 in., 10-gauge top that is formed and continuously seamwelded, with 10-gauge top reinforcement plate and 7-gauge side skirt. 7-gauge reinforcement rings at spindle assembly. 5.5 in. deep, 4-point suspension, full-floating deck with six adjustable, anti-scalp rollers.
  • Cutting Heights: 1.0 in. (2.5 cm) to 5 in. (12.7 cm) in 0.25 in. (0.64 cm) increments and adjustable from operator’s seat.
  • Tractor Frame: Welded, heavy-duty tubular steel.
  • Steering & Motion Control: Hydraulically dampened twin levers adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to two height positions.
  • Front Caster Tires: 13 in. x 6.50-6 in., smooth tread, semi-pneumatic tires.
  • Drive Tires: 24 in. x 12-12 in., 4-ply Multi-Trac®.
  • Turning Radius: True zero-turn.
  • Parking Brake: Lever-actuated drum and band integrated with transmission-neutral interlock.
  • Seat: High-back, Elastomeric Vibration Control (EVC) seat, which has no springs. Seat adjusts fore and aft and features padded armrests.

Specifications

Engine
Engine Manufacturer Kohler
Horse Power 27 hp
Engine Type Command™ SP V-Twin
Displacement 724 cc
General
Transmission Two Hydro-Gear 12cc/rev pumps with integral SCR valves, powering two high-torque Parker/Ross wheel motors with 1.25" (3.2 cm) diameter tapered shafts
Wheel Size Front: 13 in. x 6.50-6 in.; Rear: 24 in. x 12-12 in.
Fuel Capacity 13.5 gals. (51.1 l)
Deck
Deck Size 60 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit

Compare Models

 Print








Year 2010
Manufacturer Exmark
Model Lazer Z LZ27KC604 Riding Mower
Style Riding
Deck
Deck Size 60 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit
Engine
Engine Manufacturer Kohler
Horse Power 27 hp
Engine Type Command™ SP V-Twin
Displacement 724 cc
General
Transmission Two Hydro-Gear 12cc/rev pumps with integral SCR valves, powering two high-torque Parker/Ross wheel motors with 1.25" (3.2 cm) diameter tapered shafts
Wheel Size Front: 13 in. x 6.50-6 in.; Rear: 24 in. x 12-12 in.
Fuel Capacity 13.5 gals. (51.1 l)

Current Promotions

There are currently no promotions available for this product.
