Showcase Home » Exmark » Quest QST24BE522 Riding Mower
Model Quick Search

$4,499.00

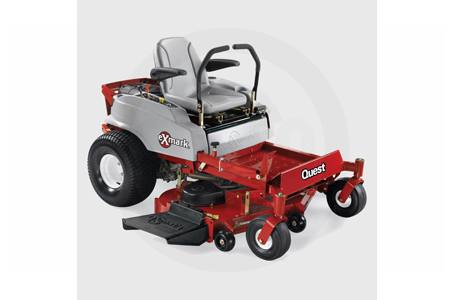

2010 eXmark Quest QST24BE522 Riding Mower

Now until October 31, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Powerful 24 hp Briggs & Stratton® Extended Life Series (ELS) engine provides superior performance and long life
  • Patented cutting-deck design yields professional results.
  • Heavy-duty, 10-guage fabricated-steel cutting deck ensures durability. 52 in. cutting width.
  • Anti-Scalp rollers allow the deck to contour the ground.
  • 18 in. high-back seat, with armrests, adjusts fore and aft from the operator seat.
  • Large 2 in. x 2 in. tubular steel frame ensures durability.
  • Cushioned drive levers reduce vibration for comfort.
  • Right-hand operator controls offer comfort and convenience.
  • Foot-operated Quick Height Adjust system allows fast height adjustments.
  • Flexible, impact resistant discharge chute.
  • 20 x 9-8, 4-ply drive tires ensure maximum traction and riding comfort.
  • Pneumatic, 10 x 4 front caster wheels provide a smoother ride.
  • Ground speeds 0 to 7 mph forward, 0 to 5.0 mph reverse, infinitely variable.
  • 4.0 Gallon Fuel Tank
  • Washout Port
  • Cup Holder
  • 3-Year Consumer Warranty
Optional Accessories
  • 2-Bag Collection System
  • Sun Shade
  • Light Kit
  • Mulch Kit
  • Hitch Kit
Specifications
  • Engine: 24 hp Briggs & Stratton ELS (Extended Life Series) Twin-Cylinder engines governed to 3650 RPM
  • Speed: 0 to 7.0 mph forward, 0 to 5.0 mph reverse, infinitely variable.
  • PTO Engagement: MagStop Electromagnetic 125 ft-lbs. clutch.
  • Fuel Capacity: 4.0 gals., single fuel tank
  • Blades: 3-18 in. (45.7 cm)
  • Weight: 660 lbs.
  • Width: 64.2 in. (163.1 cm)
  • Length: 73.4 in. (186.4 cm)
  • Height: 42.2 in. (107.2 cm)
  • Deck Width: 52 in. (132 cm) side-discharge with the option to bag or mulch.
  • Cutting Heights: 1.5 in. (3.8 cm) to 4.5 in. (11.4 cm) in 0.5 in. (1.3 cm) increments, adjustable from operator seat via foot-operated, deck-lift system.
  • Tractor Frame: Welded, 2 in. x 2 in. heavy-duty tubular steel frame.
  • Steering & Motion Control: Hydraulically dampened twin levers, adjustable both fore and aft. Also has 2-position height adjustment.
  • Front Caster Tires: Pneumatic, 10 in. x 4 in. smooth tread tires. Wheel axle has greasable roller bearing assembly. Caster spindle assembly is sealed, no-maintenance ball bearing design.
  • Drive Tires: 20 in. x 10-8 in., 4-ply.
  • Turning Radius: True zero-turn
  • Parking Brake: Lever actuated brake system internal to transaxles.
  • Seat: 18 in. high-back comfort seat with seat slide adjustment from operator seat. Height adjustable armrests are standard.

Specifications

Engine
Engine Manufacturer Briggs & Stratton
Horse Power 24 hp
Engine Type ELS (Extended Life Series) Twin-Cylinder engine
General
Wheel Size Front: 10 in. x 4 in.; Rear: 20 in. x 10-8 in.
Fuel Capacity 4.0 gals.
Deck
Deck Size 52 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit

Compare Models

 Print








Year 2010
Manufacturer Exmark
Model Quest QST24BE522 Riding Mower
Style Riding
Deck
Deck Size 52 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit
Engine
Engine Manufacturer Briggs & Stratton
Horse Power 24 hp
Engine Type ELS (Extended Life Series) Twin-Cylinder engine
Displacement
General
Transmission
Wheel Size Front: 10 in. x 4 in.; Rear: 20 in. x 10-8 in.
Fuel Capacity 4.0 gals.

Current Promotions

There are currently no promotions available for this product.
