Showcase Home » Exmark » Lazer Z Advantage Series X LZAS25KC604 Mower
Model Quick Search

$8,999.00

2010 eXmark Lazer Z Advantage Series X LZAS25KC604 Mower

MOWER SALE

Now until October 31, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form

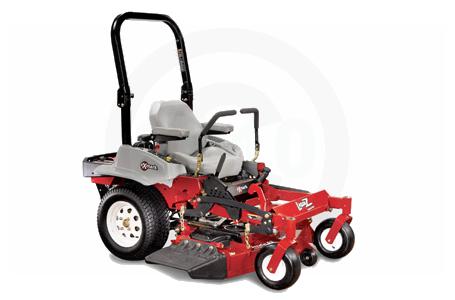

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

An Evolution of the Industry-defining Zero-turn Mower

  • Powered by 25 hp Kohler® Command™ Pro V-Twin engine.
  • 60 in. cutting deck.
  • Full-floating, UltraCut™ Series 4 5.5 in. deep deck design.
  • Our new Lazer Z AS models come standard with our most comfortable ride to date.
  • High-back, Elastomeric Vibration Control (EVC) seat with thicker bolstered, more padded armrests.
  • 13 x 5.0-6 smooth tread, pneumatic front caster tires.
  • 24 x 12-12, 4-ply Turf Master tires.
  • Exmark exclusive Parker unitized 12 cc pump and wheel motor system with no hoses, integrated cooling fans and 1.7 qt. integrated reservoir for improved performance and reduced maintenance.
  • Welded, heavy-duty 1.5 in. x 3 in. tubular steel unibody for increased durability.
  • Heavy-duty canister air filtration system that improves engine life, simplifies maintenance and boosts overall productivity.
  • High-capacity, 12 gal., single fuel tank with single fill location to reduce your time at the gas pump.
Optional Accessories
  • UltraVac® 3 Bagger and QDS Systems
  • Micro-Mulch™ System
  • Comfort Upgrades
  • Exmark Turf Striper
  • Light Kit
  • Trash Container
  • Sun Shade
  • Operator Controlled Discharge
  • 12-Volt Power Adapter
Specifications
  • Engine: 25 hp Kohler® Command ™ V-Twin
  • Drive System: Two Exmark® exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7 qt. integrated reservoir, spin on filter and heavy-duty components. 12 cc pumps and 14.5 cubic in. motors with integrated shock valve.
  • Speed: Infinitely variable speed selection from 0-10 mph forward, 0-6 mph reverse.
  • PTO Engagement: MagStop Electromagnetic 200 ft. lbs. clutch with spot brake.
  • Fuel Capacity: High-capacity, 12 gal., single fuel tank with single fill location.
  • Blades: 3-20.50 in. (52.1 cm)
  • Weight: 1113 lbs. (506 kg)
  • Width: 72.8 in. (184.9 cm)
  • Length: 83.1 in. (211.1 cm)
  • Height: 70.5 in. (179.1 cm)
  • Deck Style: Full-floating UltraCut™ Series 4. Side discharge standard with the option to bag or mulch.
  • Deck Width: 60 in., 10-gauge top that is formed and continuously seam welded , 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight. 4-point suspension, full-floating deck with 4 adjustable anti-scalp rollers.
  • Cutting Heights: 1.0 – 5.5 in. in 0.25 in. increments adjustable from the operator’s seat.
  • Blade-Tip Speed: Approximately 18,500 fpm.
  • Tractor Frame: Unibody, welded, heavy-duty 1.5 in. x 3 in. tubular steel.
  • Steering & Motion Control: Hydraulically damped twin levers adjust fore and aft. Adjustable dampers (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
  • Front Caster Tires: 13 x 5.0-6, smooth tread, pneumatic, front caster tires
  • Drive Tires: 24 x 12.0-12 Turf Master® drive tires
  • Turning Radius: True zero-turn.
  • Parking Brake: Lever actuated disc and caliper.
  • Seat: High back, bolstered seat with Elastomeric Vibration Control material.

Specifications

Engine
Engine Manufacturer Kohler®
Horse Power 25 hp
Engine Type Command ™ V-Twin
Displacement 725 cc
General
Transmission Two Exmark® exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7 qt. integrated reservoir, spin on filter and heavy-duty components. 12 cc pumps and 14.5 cubic in. motors with integrated shock valve.
Wheel Size Front: 13 x 5.0-6 in.; Rear: 24 x 12-12 in.
Fuel Capacity 12 gal.
Deck
Deck Size 60 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit

Compare Models

 Print








Year 2010
Manufacturer Exmark
Model Lazer Z Advantage Series X LZAS25KC604 Mower
Style Riding
Deck
Deck Size 60 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit
Engine
Engine Manufacturer Kohler®
Horse Power 25 hp
Engine Type Command ™ V-Twin
Displacement 725 cc
General
Transmission Two Exmark® exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7 qt. integrated reservoir, spin on filter and heavy-duty components. 12 cc pumps and 14.5 cubic in. motors with integrated shock valve.
Wheel Size Front: 13 x 5.0-6 in.; Rear: 24 x 12-12 in.
Fuel Capacity 12 gal.
