Showcase Product Detail

Audio Accounts Products Images
Showcase Home » Exmark » Next Lazer Z LZZ29KA606 Riding Mower
Model Quick Search

$11,499.00
$10,499.00
$1,000.00

2010 eXmark Next Lazer Z LZZ29KA606 Riding Mower

Demo Unit 70hrs

Now until October 31, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form

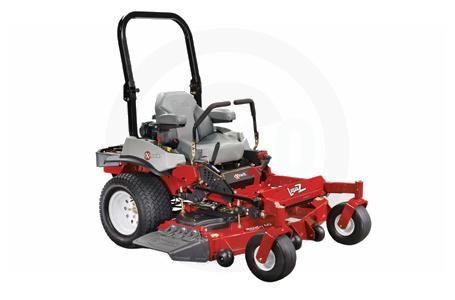

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The Unmatched Professional-grade Mower Advances to the Next Level

  • Powered by 29 hp Kawasaki® V-Twin engine.
  • 60 in. full-floating UltraCut™ Series 6 cutting decks.
  • Our new Lazer Z models come standard with our most comfortable ride to date.
  • Exmark exclusive Parker unitized 16 cc pump and wheel motor system with no hoses, integrated cooling fans and 1.7 qt. integrated reservoir for improved performance and reduced maintenance.
  • 24 x 12-12, 4-ply MultiTrac® drive tires provide optimum traction and stability.
  • Large diameter (13 x 6.50-6) smooth-tread, semi-pneumatic, front caster tires for increased reliability.
  • Welded, heavy-duty 1.5 in. x 3 in. tubular steel unibody for increased durability.
  • Heavy-duty canister air filtration system that improves engine life, simplifies maintenance and boosts overall productivity.
  • High-back, two-tone, bolstered seat with Elastomeric Vibration Control (EVC) material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion. Also includes fore-aft slide adjustable seat back and seat flip up.
  • High-capacity, 12 gal., single fuel tank with single fill location to reduce your time at the gas pump.
  • Adjustable dampers allow the operator to custom drive responsiveness to suit personal preference.
Optional Accessories
  • UltraVac®3-Bagger and QDS Systems
  • Micro-Mulch™ System
  • Comfort Upgrades
  • Exmark Turf Striper
  • Light Kit
  • Trash Container
  • Sun Shade
  • Operator Controlled Discharge
  • 12-Volt Power Adapter
Specifications
  • Engine: 29 hp Kawasaki V-Twin.
  • Drive System: Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7 qt. integrated reservior, spin on filter and heavy-duty components. 16 cc pumps and 17.1 cui motors.
  • Speed: Infinitely variable speed selection from 0 - 11.5 mph forward, 0 - 7 mph reverse.
  • PTO Engagement: MagStop Electromagnetic 200 ft. lbs. clutch with spot brake.
  • Fuel Capacity: High-capacity, 12 gal., single fuel tank with single fill location.
  • Blades: 3-20.50 in. (52.1 cm)
  • Weight: 1212 lbs. (550 kg)
  • Width: 72.8 in. (184.9 cm)
  • Length: 83.1 in. (211.1 cm)
  • Height: 70.5 in. (179.1 cm)
  • Deck Style: Full-floating UltraCut™ Series 6 featuring the heavy-duty Triton® spindle. Side discharge standard with the option to bag or mulch.
  • Deck Width: 60 in. 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight. 4-point suspension, full-floating deck with 4 adjustable cone-shaped, anti-scalp rollers.
  • Cutting Heights: 1.0 – 5.5 in. in 0.25 in. increments adjustable from the operator’s seat.
  • Blade-Tip Speed: Approximately 18,500 fpm.
  • Tractor Frame: Unibody, welded, heavy-duty 1.5 in. x 3 in. tubular steel.
  • Steering & Motion Control: Hydraulically damped twin levers adjust fore and aft. Adjustable dampers (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
  • Front Caster Tires: 13 x 6.5-6, smooth tread, semi-pneumatic tires.
  • Drive Tires: 24 x 12-12, 4-ply Multi-Trac®.
  • Turning Radius: True zero-turn.
  • Parking Brake: Lever actuated disc and caliper.
  • Seat: High back, two-tone, bolstered seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion, as well as fore-aft slide and seat flip up.

Specifications

Engine
Engine Manufacturer Kawasaki
Horse Power 29 hp
Engine Type V-Twin.
Displacement 852 cc
General
Transmission Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7 qt. integrated reservior, spin on filter and heavy-duty components. 16 cc pumps and 17.1 cui motors.
Wheel Size Front: 13 x 6.5-6 in.; Rear: 24 x 12-12 in.
Fuel Capacity 12 gal.
Deck
Deck Size 60 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit

Compare Models

 Print








Year 2010
Manufacturer Exmark
Model Next Lazer Z LZZ29KA606 Riding Mower
Style Riding
Deck
Deck Size 60 in.
Discharge Type Standard: Side; Optional: Bagger or Mulching Kit
Engine
Engine Manufacturer Kawasaki
Horse Power 29 hp
Engine Type V-Twin.
Displacement 852 cc
General
Transmission Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7 qt. integrated reservior, spin on filter and heavy-duty components. 16 cc pumps and 17.1 cui motors.
Wheel Size Front: 13 x 6.5-6 in.; Rear: 24 x 12-12 in.
Fuel Capacity 12 gal.
