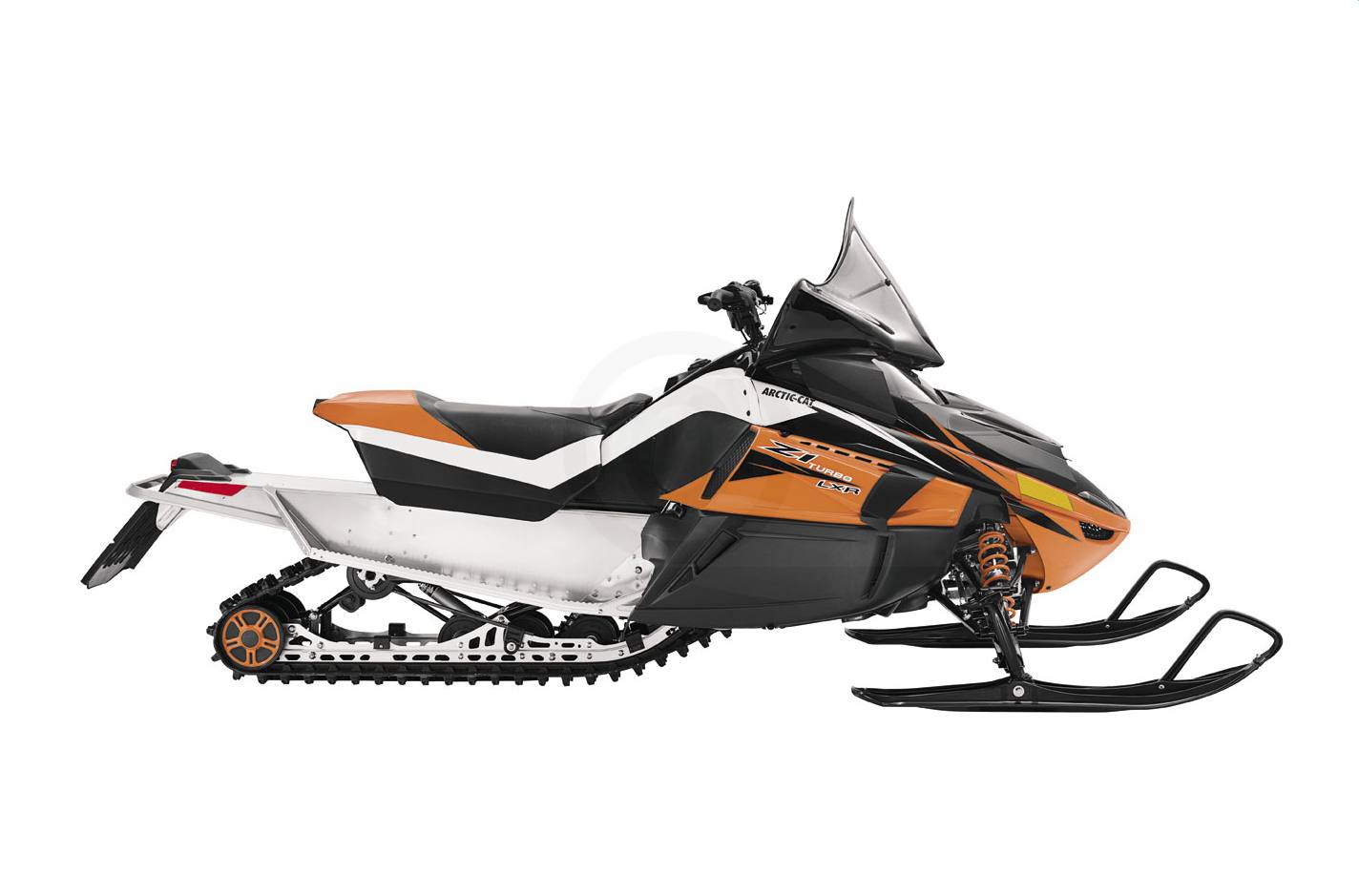

2011 Arctic Cat Z1 Turbo LXR
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Slide-Action Rear Suspension
  • 4-Stroke Z1 Turbo Engine
  • Twin Spar Chassis
  • ACT Diamond Direct Drive with Reverse
  • Infinite Rider Positioning
  • Heated Seat
  • Twin Spar Rear End
Engine
  • Type: 4-stroke
  • Displacement: 1056 cc
  • Cooling: Liquid
  • Cylinders: Twin
  • Bore x Stroke: 98 x 70 mm
  • Lubrication: Dry Sump
  • Ignition: Full transistor/coil at plug
  • Carburetion: 46 mm single throttle body EFI
  • Exhaust: Turbocharger with stainless steel muffler
  • Fuel Capacity: 10.8 gal.
Powertrain
  • Drive clutch: Arctic (rpm sensing)
  • Driven clutch: Arctic (roller cam) ACT drive system
  • Brakes: Hydraulic disc
Suspension
  • Front suspension: AWS™ VII doublewishbone A-arms with FOX Zero Pro (IFP) shocks and sway bar
  • Front travel: 9.5 in.
  • Rear suspension: Slide-action frame with coupling blocks, adjustable torsion springs and FOX Zero Pro (IFP) rear arm shock
  • Rear travel: 13.5 in.
Dimensions
  • Overall length: 118 in.
  • Overall width: 47.25 in.
  • Ski stance: 43 in.
  • Track width: 15 in.
  • Track length: 128 in.
  • Lug: 1.25 in.
Standard Features
  • Dual halogen (4-bulb) headlight
  • UHMW plastic saddleless ski material
  • Digital/analog tachometer
  • Digital/analog speedometer
  • Dual stage trip odometer
  • Electric gas gauge
  • Low oil light
  • Low battery light
  • Coolant overheat light
  • Altimeter
  • Clock
  • Electric start
  • Reverse
  • High/low hand warmer
  • High/low thumb warmer
  • Accessory outlet
  • High windshield
  • Infinite Rider Positioning
  • Deluxe Gauge
  • Heated seat
  • Rear storage bag
Colors
  • Green
  • Orange
Optional Features
  • Mirrors, (Low, Mid-height) windshield
  • Tether switch
  • 2-up seat
  • Hitch
  • Cat Comm
  • Engine heater
  • Rack
  • Sport bumper
  • Hand guards

Specifications

Engine
Engine Type 4-stroke
Displacement 1056 cc
Bore x Stroke 98 x 70 mm
Cylinders Twin
Engine Cooling Liquid
Carburetion 46 mm single throttle body EFI
Ignition Electric start
Exhaust Turbocharger with stainless steel muffler
Drivetrain
Brake Type Hydraulic disc
Drive Clutch Arctic (rpm sensing)
Driven Clutch Arctic (roller cam) ACT drive system
Suspension
Front Suspension AWS™ VII doublewishbone A-arms with FOX Zero Pro (IFP) shocks and sway bar
Front Travel 9.5 in.
Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and FOX Zero Pro (IFP) rear arm shock
Rear Travel 13.5 in.
Ski Stance 43 in.
Track Dimensions 15 in. Width, 128 in. Length
General
Speedometer Digital/analog
Tachometer Digital/analog
Odometer Dual stage trip
Headlight Dual halogen (4-bulb) headlight
Fuel Capacity 10.8 gal.
Windshield Low, Mid-height windshield
Color Green, Orange
Options
Electric Start Yes
Hand & Thumb Warmers High/low hand warmer, High/low thumb warmer
Reverse Yes
Mirrors Optional

Compare Models

 Print








Year 2011
Manufacturer Arctic Cat
Model Z1 Turbo LXR
MSRP* $13,799.00
Drivetrain
Brake Type Hydraulic disc
Drive Clutch Arctic (rpm sensing)
Driven Clutch Arctic (roller cam) ACT drive system
Engine
Engine Type 4-stroke
Displacement 1056 cc
Bore x Stroke 98 x 70 mm
Cylinders Twin
Engine Cooling Liquid
Carburetion 46 mm single throttle body EFI
Ignition Electric start
Exhaust Turbocharger with stainless steel muffler
Alternator
General
Speedometer Digital/analog
Tachometer Digital/analog
Odometer Dual stage trip
Headlight Dual halogen (4-bulb) headlight
Fuel Capacity 10.8 gal.
Dry Weight
Windshield Low, Mid-height windshield
Color Green, Orange
Warranty
Options
Electric Start Yes
Hand & Thumb Warmers High/low hand warmer, High/low thumb warmer
Reverse Yes
Mirrors Optional
Suspension
Front Suspension AWS™ VII doublewishbone A-arms with FOX Zero Pro (IFP) shocks and sway bar
Front Travel 9.5 in.
Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and FOX Zero Pro (IFP) rear arm shock
Rear Travel 13.5 in.
Ski Type
Ski Stance 43 in.
Track Type
Track Dimensions 15 in. Width, 128 in. Length
