$8,399.00
$7,399.00
$1,000.00

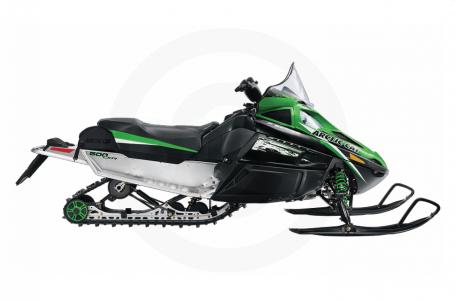

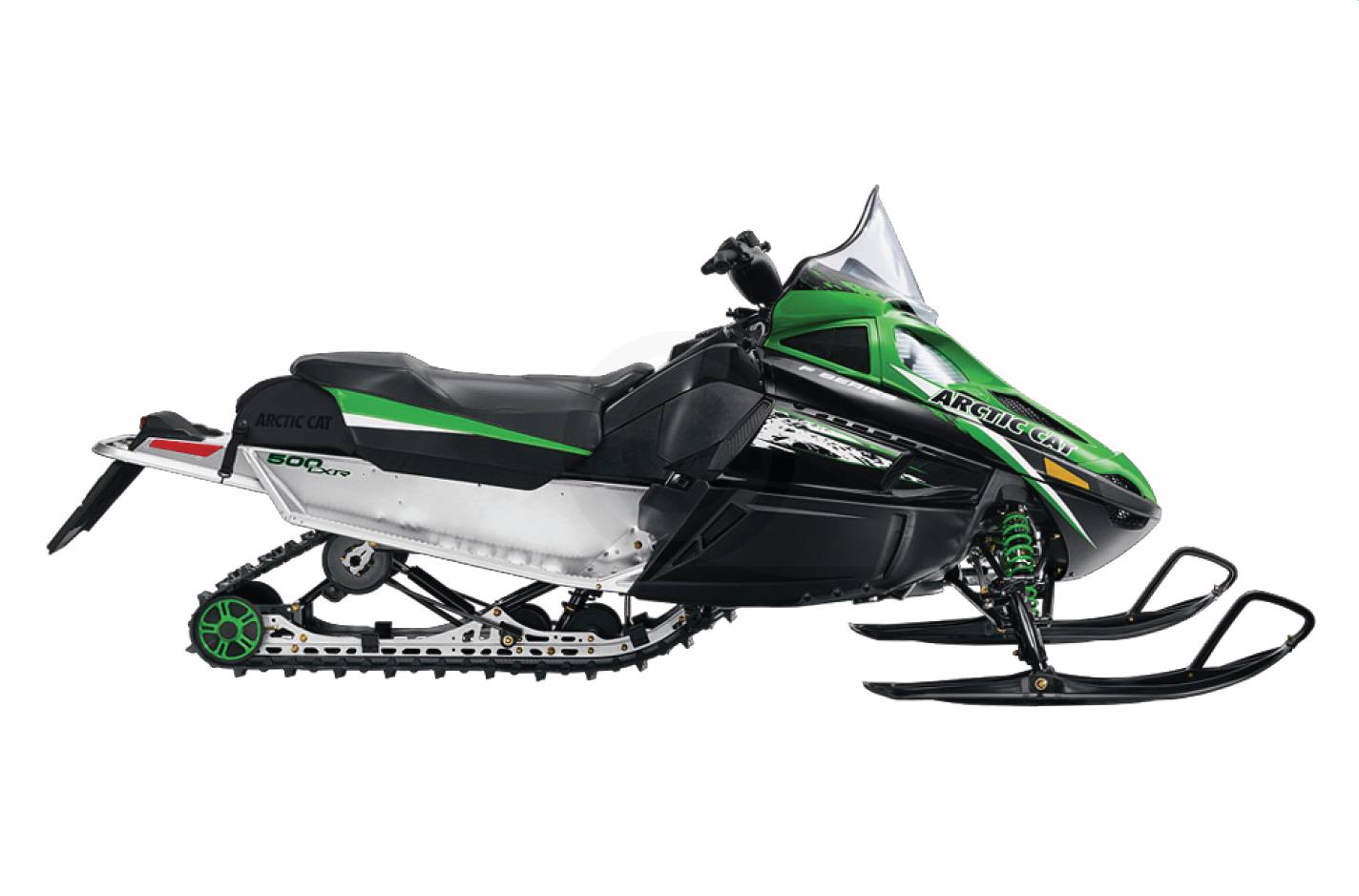

2010 Arctic Cat F5 LXR

Now until October 31, 2010

Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

This snowmobile is packed with features, but so value-priced that you might think were giving it away. The F5 LXRs laydown engine has batteryless electronic fuel injection in the rock-solid Twin Spar™ chassis, moving your snowmobile mass toward the ground and Lowering your center of gravity. Its Infinite Rider Positioning™ gives you the perfect ride position, allowing you full-on customization of the sled of your dreams, from seat position to footrest height. Slide-Action Rear Suspension™ incorporates a U-shaped front arm slot, creating a half-inch of "sliding" movement, thereby preventing the front arm from torque locking And the unprecedented Body-Saving Ride Technology keeps you safe and secure, giving you the ride of your life without feeling the bump of the trail later.


Slide-Action Rear Suspension™: Straight from the Sno Pro® race sled. Slide-Action Rear Suspension™ incorporates a U—shaped front arm slot that fits over a shaft bolted across the tunnel. This creates a half—inch of "sliding" movement, preventing the front arm from torque locking. Better still, it helps keep the skis planted during acceleration, all but eliminating ski lift when gassing it through the corners.


500 Laydown Engine - The 500 engine is a 2-stroke, 499 cc liquid twin with batteryless electronic fuel injection. The engine is "laid down" in the chassis to move snowmobile mass toward the ground and effectively lower the center of gravity. BEFI adjusts for temperature and altitude. Count on quick starts, great fuel economy and cleaner emissions.


Twin Spar™ Chassis: Designed and manufactured to be incredibly rigid, the Twin Spar™ chassis employs two box-aluminum spars triangulated with the steering supports and tunnel spars. Self—piercing rivet construction ensures joint rigidity and long—lasting strength. The Twin Spar chassis places you in the perfect neutral riding position. With a taller seat and handlebar location, this position maximizes comfort and control in all riding conditions.


ACT™ Diamond Direct Drive w/Reverse - The tough-as-nails ACT™ Diamond Direct Drive™ planetary gear case allows lower track speed at clutch engagement without sacrificing top speed. This means a smooth ride from start to finish and the added convenience of reverse with the push of a button.


Infinite Rider Positioning™: The adjustable handlebar lets you fine your ideal riding position. Pair IRP™ with the Twin Spart™ chassis and you can fine-tune the riding position to maximize comfort and control in all riding conditions.


Electric Start: Insert the key, give it a turn and hear the engine roar to life. For even more added convenience, check out the remote electric start accessory.


New Twin Spar™ Rear End: Our Twin Spar™ chassis’ rear end went through a little modification. Or beautification, whichever you prefer. We’ve removed the rear plastic trunk and added a new tunnel design. We also added a new LED taillight, snowflap and rear bumper. It’s definitely one hot—looking chassis.

    Engine
    • Type: 2-stroke
    • Displacement: 499 cc
    • Cooling: Liquid
    • Cylinders: Twin
    • Bore x Stroke: 71 x 63 mm
    • Lubrication: Oil injection
    • Ignition: 3D
    • Carburetion: 38 mm throttle body batteryless EFI
    • Exhaust: Tuned pipe and canister
    • Fuel Capacity: 12.6 gal.
    Power Train
    • Drive: Arctic (rpm sensing)
    • Driven clutch: Arctic (roller cam) ACT™ drive system
    • Brakes: Hydraulic disc
    Suspension
    • Front suspension: AWS™ VII double-wishbone A-arms with hydraulic twin tube shocks and sway bar
    • Front travel: 9.5 in.
    • Rear suspension: Slide-action frame with coupling blocks, adjustable torsion springs and hydraulic twin tube shocks
    • Rear travel: 13.5 in.
    Dimensions
    • Overall length: 118 in.
    • Overall width: 47.25 in.
    • Ski stance: 43 in.
    • Track width: 15 in.
    • Track length: 128 in.
    • Lug: 1.0 in.
    Color
    • Green
    Standard Features
    • Dual halogen (4-bulb) headlight
    • UHMW plastic saddleless ski material
    • Digital/analog tachometer
    • Digital/analog speedometer
    • Dual stage trip odometer
    • Electric gas gauge
    • Low oil light
    • Coolant overheat light
    • Clock
    • Accessory outlet
    • Reverse
    • High/low hand warmer
    • High/low thumb warmer
    • Mid-height windshield
    • Infinite Rider Positioning™
    • Electric start
    • Deluxe Gauge
    Optional Features
    • Mirrors
    • High windshield
    • Tether switch
    • Spark plug holder
    • 2-up seat
    • Hitch
    • Cat Comm™
    • Rack
    • Sport bumper

    Specifications

    Engine
    Engine Type 2-stroke
    Displacement 499 cc
    Bore x Stroke 71 x 63 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 38 mm throttle body batteryless EFI
    Ignition 3D
    Exhaust Tuned pipe and canister
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with hydraulic twin tube shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and hydraulic twin tube shocks
    Rear Travel 13.5 in.
    Ski Stance 43 in.
    Track Dimensions 128" x 15" x 1.0"
    General
    Speedometer Digital/Analog
    Tachometer Digital/Analog
    Odometer Dual stage trip
    Headlight Dual Halogen (4 bulb)
    Fuel Capacity 12.6 gal.
    Color Green
    Options
    Electric Start Standard
    Hand & Thumb Warmers Standard
    Reverse Standard
    Mirrors Optional

    Compare Models

    Print








    Year 2010
    Manufacturer Arctic Cat
    Model F5 LXR
    Style Performance
    MSRP* $8,399.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Engine
    Engine Type 2-stroke
    Displacement 499 cc
    Bore x Stroke 71 x 63 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 38 mm throttle body batteryless EFI
    Ignition 3D
    Exhaust Tuned pipe and canister
    Alternator
    General
    Speedometer Digital/Analog
    Tachometer Digital/Analog
    Odometer Dual stage trip
    Headlight Dual Halogen (4 bulb)
    Fuel Capacity 12.6 gal.
    Dry Weight
    Windshield
    Color Green
    Warranty
    Options
    Electric Start Standard
    Hand & Thumb Warmers Standard
    Reverse Standard
    Mirrors Optional
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with hydraulic twin tube shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and hydraulic twin tube shocks
    Rear Travel 13.5 in.
    Ski Type
    Ski Stance 43 in.
    Track Type
    Track Dimensions 128" x 15" x 1.0"
